Brand Name : LNF-Crowd Control Barriers
Model Number : 1090mm Height*2500mm Width Crowd Control Barriers
Certification : ISO
Place of Origin : American ,Australia ,Canadan
MOQ : 500 liner meter
Price : 18.88$ per set
Payment Terms : TT30% deposit balance 70% at sight of finished products
Supply Ability : 10000 liner meters
Delivery Time : 7 work days
Packaging Details : All metal Pallets
Materials : 304 ,316,316L
Color : Any Ral color
Type : Weld Steel
Warranty : 3-25 years depand on treatment
Pipes : OD 25 mm ,32mm ,38mm
Customized : Available
Treatment : Hot Dipped Galvanized Or Powder Painted
Market : World Wide
Technical : Welded
Production Capacity : 5KM per days
Infill Picket : Rod or The Tubes
Feet Type : U / Y / flat , etc.
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|

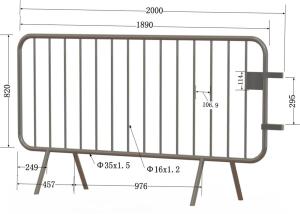

Product | 6.5 feet | 7.5 feet | 8.5 feet | NYPD |
Length | 6.5' (2 m) | 7.5' (2,3 m) | 8.5' (2,6 m) | 7'-0.75'' (2,15 m) |
Height | 3.6' (1,1 m) | 3.6' (1,1 m) | 3.6' (1,1 m) | 3.6' (1,1 m) |
Outer tubing | Ø 1.5'' 16 ga | Ø 1.5'' 16 ga | Ø 1.5'' 16 ga | Ø 1.5'' 15 ga |
Ø 38 x 1,5 mm | Ø 38 x 1,5 mm | Ø 38 x 1,5 mm | Ø 38 x 1,7 mm | |
Picket's number | 14 | 16 | 18 | 14 |
Weight | 40.78 lbs. (18.5kg) | 44.09 lbs. (20kg) | 47.40 lbs. (21.5kg) | / |
Upright tubing | Ø 5/8'' 19 GA | Ø 3/8'' 16 GA | ||
Ø 16 x 1 (mm) | Ø 10 x 1.4 (mm) | |||
Special properties |
|
| ||
Characteristics |
|
